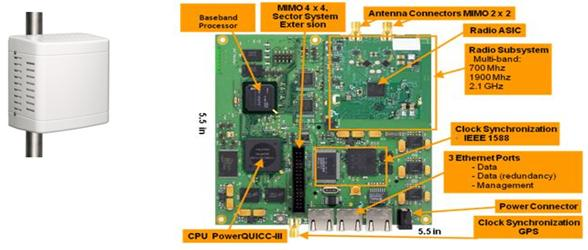

4G LTE Femto / Pico Cell


On the base station side of the network SAI has developed the LTE enhanced node B (eNB) solution to LTE release 9.0 specification.

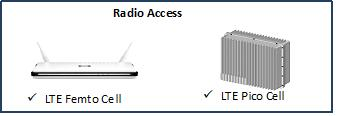

This solution is available in Micro, Pico and Femto formats and supports.

Event Images
  • 3GPP Rel-9 Compliant
  • Bandwidths of 1.4, 3, 5, 20 MHz
  • Support of UE Categories 1,2 3, and 4
  • SISO and 2x2 MIMO
  • User downlink data rates of 30 Mbps or more
  • User uplink data rates of 10 Mbps or more
  • S1 and X2 interfaces
Event Images

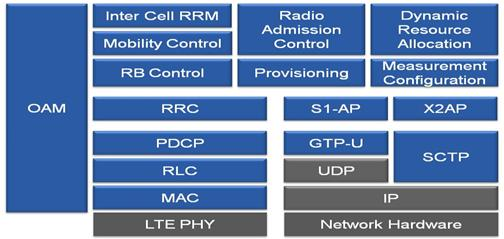

ENB protocol stack

The ENB protocol stack includes the PHY layer, the MAC, RLC, PDCP and RRC layers as well as higher layers needed for radio and connection management. In addition, the stack includes the assorted backhaul connection management needs including G-TP, SCTP S1 and X1.

The ENB protocol stack is available as a software product for third party implementations.

Event Images

SAI Technology’s LET End-To-End Demo:

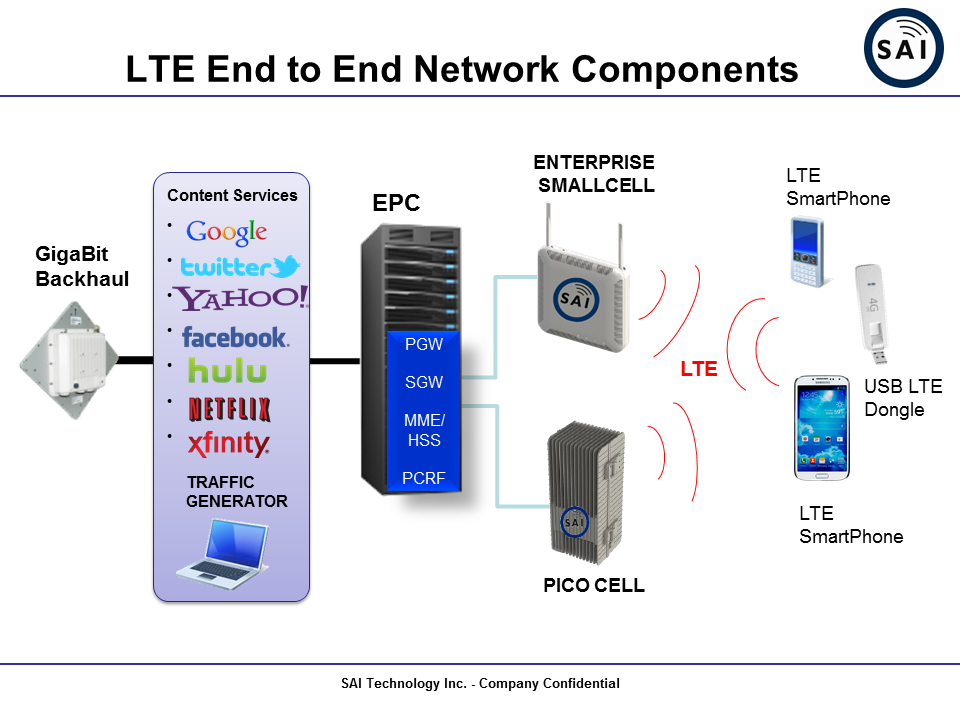

SAI Technology's can demonstrate full LTE End-to-End Network Functionality. The diagram below illustrates LTE Handsets connecting to either a Small Cell or Pico Cell with full LTE Capabilities.

Event Images
Interested in the LTE, get in touch with us today.
