5G Development Focus


Event Images

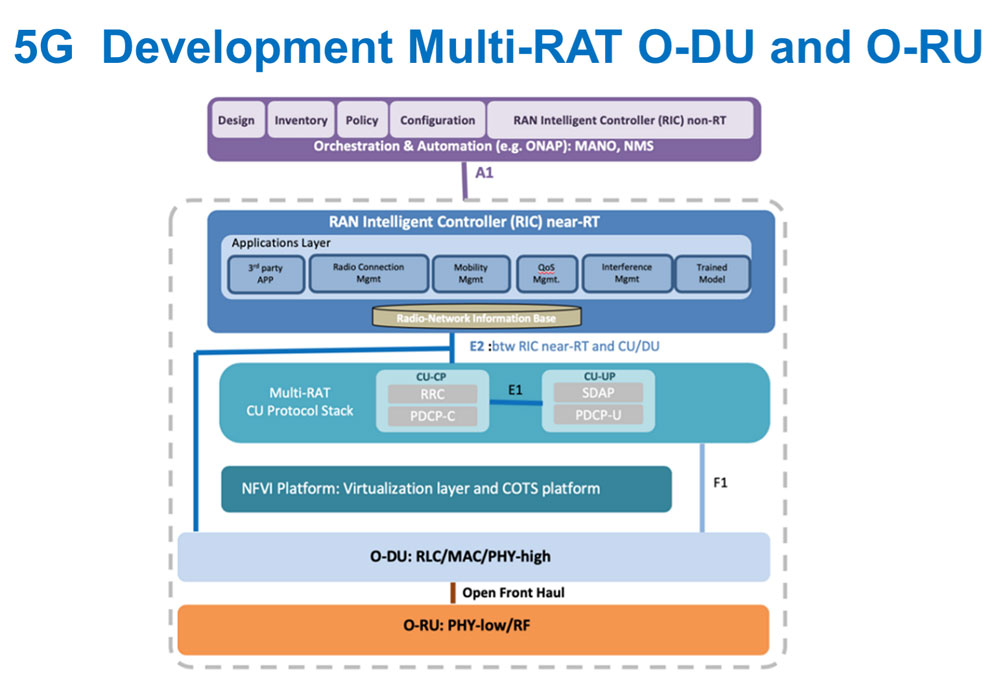

    Multi RAT Design Consideration with Front Haul (DU) and Backhaul (RU)

Event Images

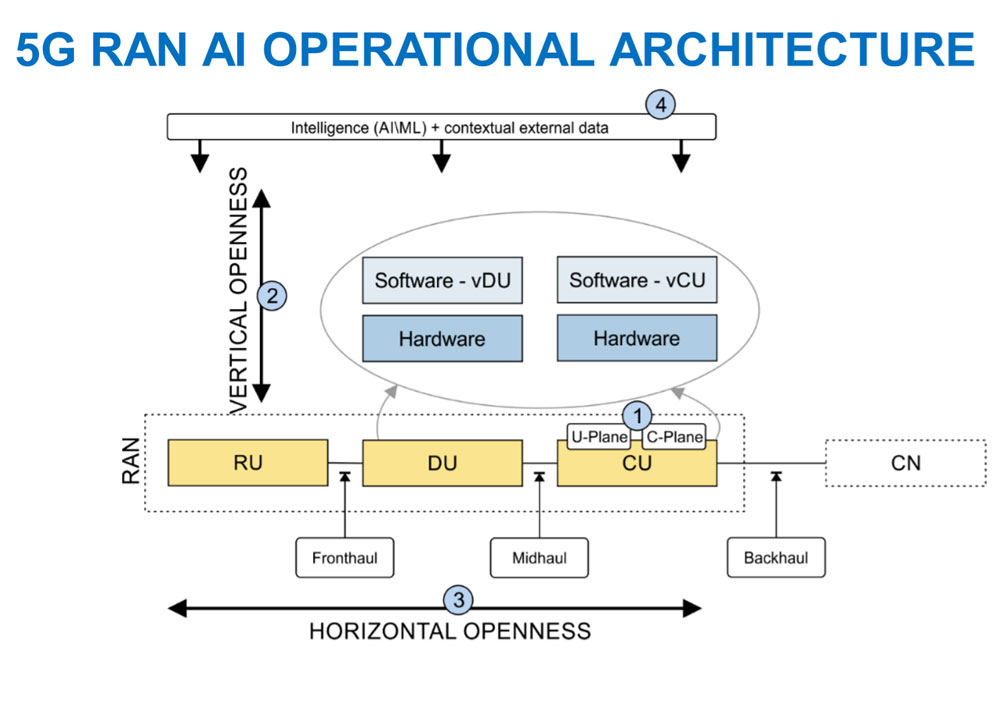

5G RAN architecture and functional design

5G RAN architecture is designed based on the extreme mobile broadband (xMBB), massive machine-type communications (mMTC) and ultra-reliable machine-type communications (uMTC), as well as the five specific use cases. 5G RAN is service delivery architecture designed to support multiple services such as Gaming, AR/VR, Non-Real Time and Real Time applications delivery.

Event Images

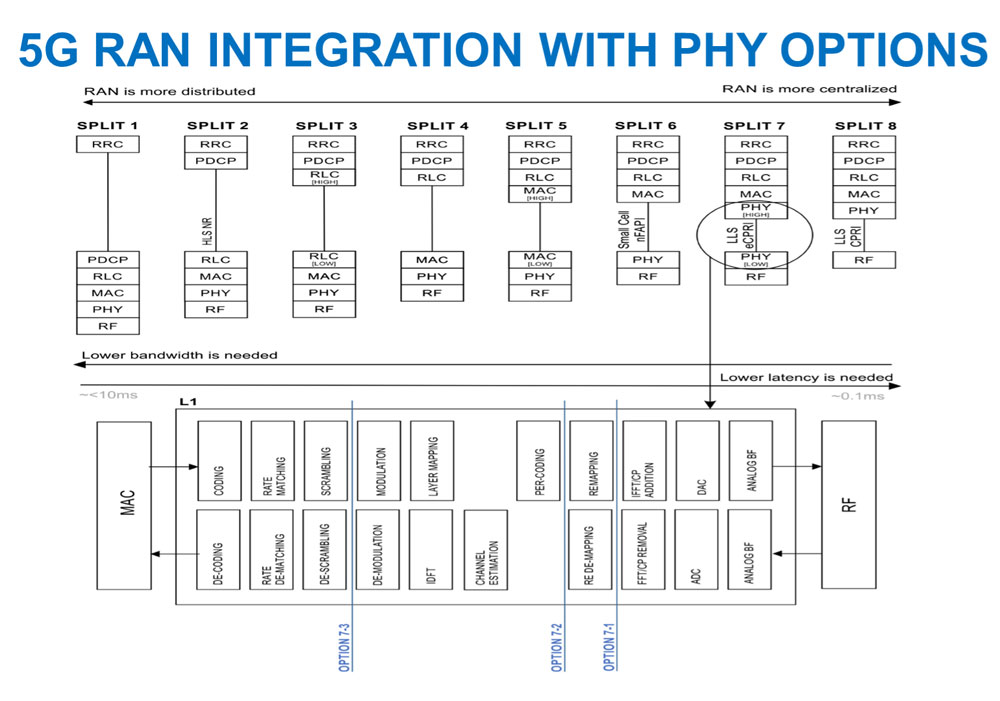

Split Architecture

PHY Layer blocks of modulation, channel coding, waveform mapping etc. would ideally be interchangeable through parameterization or (de-) activation of certain features. In other words, there would be a physical or logical implementation that supports easy switching between different variants, and even their multiplexing in time, frequency and/or space. Physically separate baseband processing chains (with potentially different / parallel transmission circuitries) may be required for different services, bands or cell types. Split 1 to Split 8 implementation at the RAN and Protocol layers are very important. The PDCP layer is currently seen as a viable option of UP aggregation between LTE-A evolution and novel 5G AIVs [SMR+15 · Single RRC: a single RRC instance exists at the UE and at the RAN either for the new 5G AI or for the evolved LTE-A; · Dual RRC: two RRC instances exist at the UE and at the RAN, one for the new 5G AI and another for the evolved LTE-A.
